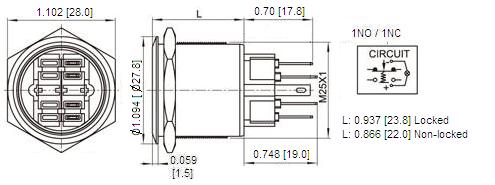

Ø 25mm Anti-Vandal Pushbutton Switch
25 Flat Pushbutton 22 Flat LED ring Pushbutton 25 Power symbol  Pushbutton 25 High Concave Pushbutton 25 Dome Pushbutton 25 Flat Dot LED Pushbutton

The G25 series Anti-Vandal pushbutton switch is made of stainless steel. It has internal sealing designed with IP67 rating and external mechanical impacts protection upto IK10 ; with over 500,000 mechanical cyles, and loading operating life above 50,000 cycles. The function is 1NO+1NC,or 2NO/2NC, locked or non-locked, with LED illumination in various color options, either center dot or circle ring. This switch is fully compliant with RoHS.


Other Anti-Vandal switches
12mm series | 16mm series | 19mm series | 22mm series

IP67 <> RoHS compliant
SPECIFICATION:
Rating: 5A 250V
Electrical life: Over 50,000 cycles
Mechanical life: Over 500,000 cycles
Operating force: 300 ~ 500 gram
Working temperature: -20°C to +55°C
Material:
Body: Stainless steel
Actuator: Stainless steel
Base: PBT
Contact: Silver Alloy
Terminal: Brass, silver plated
Download G25 Spec sheet
Some frequently used Part Numbers: Check stock
G25-K1FNNN2 SP, 1NO+ 1NC, flat button, non-illuminated, solder terminal
G25-22FRL32 DP, 2NO+2NC, locked, flat button with blue LED ring for 12V, solder terminal
Check stock

Build own part number
