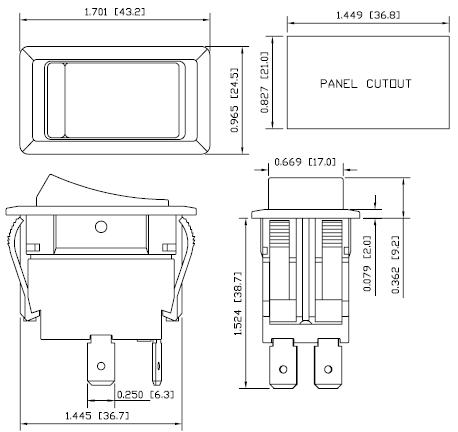

The HY60 series heavy duty industrial rocker switch has high rating with UL, cUL, Semko and ENEC approvals. It snaps easily
into standard panel cut-out: 0.827 x 1.449" (21.0 x 36.8mm).
The switch is DP with several functions, including On/Off, On/On, On/Off/On and momentary. Moreover, it has internal design sealed
against water and dust, with IP54
rating without PVC cap. This switch is fully compliant with RoHS.
Other dust and water proof switches, go to
KND2 series
, HY12-9 series and
YSR-15 series
IP54
RoHS
|
|
SPECIFICATION:
Rating:
20A 125VAC, 15A 277VAC UL, cUL
2HP 125-250VAC UL, cUL
1.5HP 125-250VAC (momentary function)
16(8)A 250V~ S, ENEC
12(6)A 250V~ S, ENEC
Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles
|
Material:
Body: PA66
Actuator: PA66
Contact: Silver Alloy
Terminal: Silver plated copper
Download
HY60 Spec sheet (pdf file)
Check Stock
|

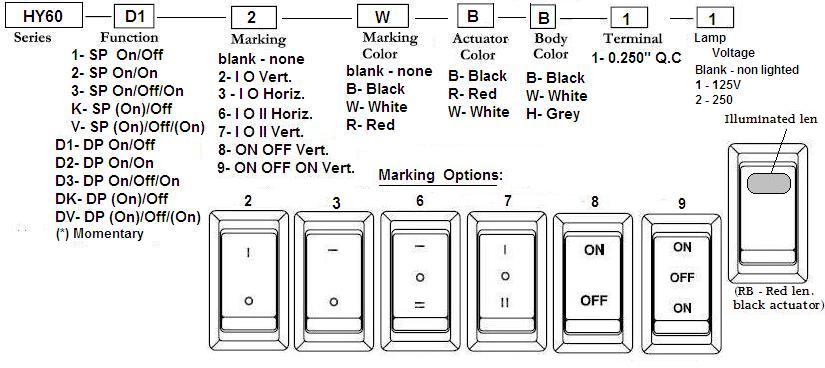

Some frequently used Part Numbers:
|
|
|
HY60-D12WBB1 |
DPST, ON OFF, 20A 125VAC, IP54 water proof, black body/actuator, white I O marking, 0.250" Q.C |
Check Stock |
HY60-D2BB1 |
DPDT, ON ON, 20A 125VAC, IP54 water proof, black body/actuator, no marking, 0.250" Q.C |
Check Stock |
HY60-D3BB1 |
DPDT, ON OFF ON, 20A 125VAC, IP54 water proof, black body/actuator, no marking, 0.250" Q.C |
Check Stock |
HY60-DKBB1 |
DPST, (ON) OFF, 20A 125VAC, IP54 water proof, black body/actuator, no marking, 0.250" Q.C |
Check Stock |
HY60-DVBB1 |
DPDT, (ON) OFF (ON), 20A 125VAC, IP54 water proof, black body/actuator, no marking, 0.250" Q.C |
Check Stock |
