Ø 22mm Anti-Vandal Pushbutton Switch
22 Dome Pushbutton 22 Flat LED ring Pushbutton 22 Flat  Pushbutton 22 High Concave Pushbutton 22 Flat LED ring Pushbutton 22 Flat Dot LED Pushbutton

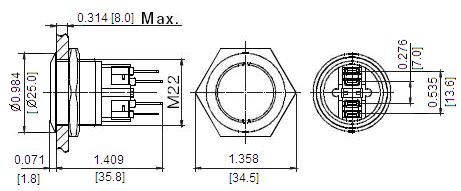

The G22 series Anti-Vandal pushbutton switch is made of stainless steel. It has internal sealing designed with IP67 rating and external mechanical impacts protection upto IK10 ; with over 500,000 mechanical cyles, and loading operating life above 50,000 cycles. It's easy to assemble into panel hole 0.866" Dia. (Ø 22.0mm). The function is 1NO+1NC, locked or non-locked, with LED illumination in various color options, either center dot or circle ring. This switch is fully compliant with RoHS.


Other Anti-Vandal switches
12mm series | 16mm series | 19mm series | 25mm series

IP67 <> RoHS compliant
SPECIFICATION:
Rating: 5A 250V
Electrical life: Over 50,000 cycles
Mechanical life: Over 500,000 cycles
Operating force: 300 ~ 500 gram
Working temperature: -20°C to +55°C
Material:
Body: Stainless steel
Actuator: Stainless steel
Base: PBT
Contact: Silver Alloy
Terminal: Brass, silver plated
Download G22 Spec sheet

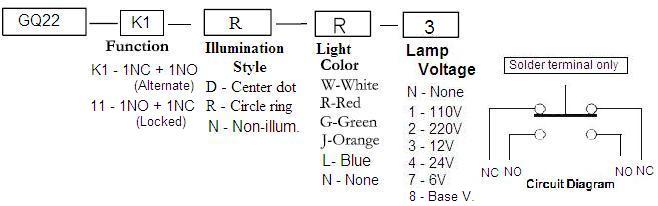

Some frequently used Part Numbers: Check stock
G22-KFNNN6 SPST, (On)-Off, flat button, non-illuminated, screw terminal
G22-K1FRL12 1NO+1NC, non-locked, flat button with blue LED ring for 110V, solder lug terminal
Check stock

Build own part number
