Ø 19mm Anti-Vandal Pushbutton Switch
19 flat Pushbutton 19 High Pushbutton 19 Flat Power symbol Pushbutton 19 Flat LED ring Pushbutton 19 flat Pushbutton 19 High Dot LED Pushbutton

The G19 series Anti-Vandal pushbutton switch is made of stainless steel. It has internal sealing designed with IP65 rating and external mechanical impacts protection upto IK10 ; with over 500,000 mechanical cyles, and loading operating life above 50,000 cycles. The function is momentary ON or latched ON, with LED illumination in various color options, either center dot or circle ring. This switch is fully compliant with RoHS.


Other Anti-Vandal switches
12mm series | 16mm series | 22mm series 25mm series

IP65 <> RoHS compliant
SPECIFICATION:
Rating: 3A 250V
Electrical life: Over 50,000 cycles
Mechanical life: Over 500,000 cycles
Operating force: 300 ~ 500 gram
Working temperature: -20°C to +55°C
Material:
Body: Stainless steel
Actuator: Stainless steel
Base: PBT
Contact: Silver Alloy
Terminal: Brass, silver plated
Download G19 Spec sheet
Some frequently used Part Numbers: Check stock

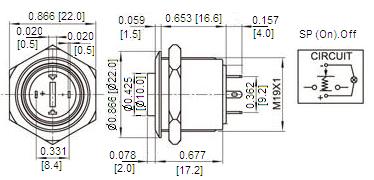

G19-KFNNN6 SPST, (On)-Off, flat button, screw terminal

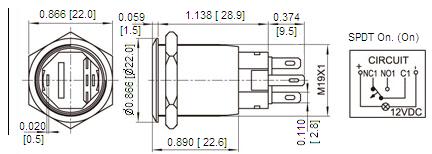

G19-CFDL42 SPDT, (On) On, flat button with 24V blue LED lighted dot, solder lug terminal
Check stock

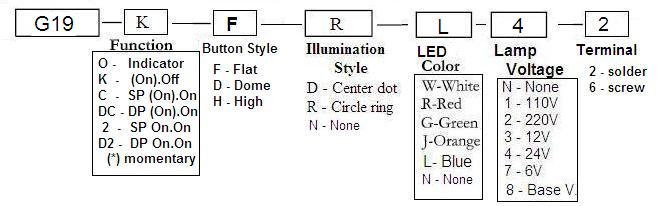

Build own part number
