RL3-4S Rocker switch

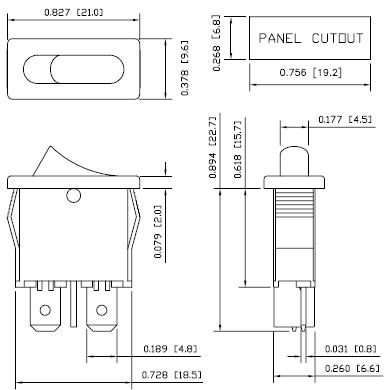

The RL3-4S series slim rocker switch has UL, VDE approvals. It snaps easily into the standard panel cut-out: 0.268 x 0.756" (6.8 x 19.2mm). The switch is SPST On.Off, and is fully compliant with RoHS.


RoHS compliant
SPECIFICATION:
Rating:
10A 125VAC, UL, cUL
6(2)A 250V~ T125 1E4, VDE

Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Material:
Body: PA66
Actuator: PA66
Contact: Silver Alloy
Terminal: Silver plated copper

Download RL3-4S Spec sheet (pdf file)
Some frequently used Part Numbers:
RL3-4S1BB4 SPST, ON OFF, 10A 125VAC, black body/actuator, no marking, 0.187" Q.C | Check Stock
RL3-4S11WBB4 SPST, ON OFF, 10A 125VAC, black body/actuator, white dot marking, 0.187" Q.C | Check Stock
RL3-4S1WW4 SPST, ON OFF, 10A 125VAC, white body/actuator, no marking, 0.187" Q.C | Check Stock
RL3-4S12WBB4 SPST, ON OFF, 10A 125VAC, black body/actuator, white I O marking, 0.187" Q.C | Check Stock

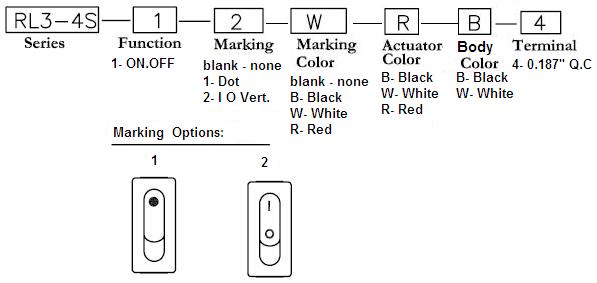

Build own part number
