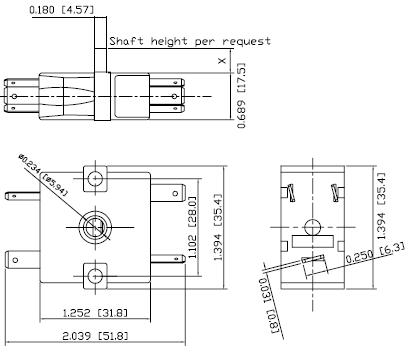

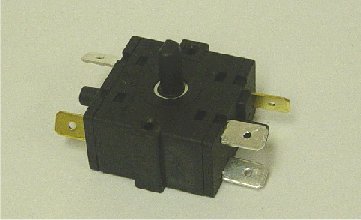

RL7-1 Rotary switch
The RL7-1 series rotary switch has high rating with UL, cUL and VDE approvals. It fits the industrial standard assembly. The switch has many functios for different applications This switch is fully compliant with RoHS.



RoHS compliant
SPECIFICATION:
Rating:
16A 125-250VAC, 105°C UL, cUL
16(4)A 250V~ VDE
Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Material:
Body: PA66
Contact: Silver Alloy
Terminal: Silver plated brass

Download
RL7-1 Spec sheet (pdf file)

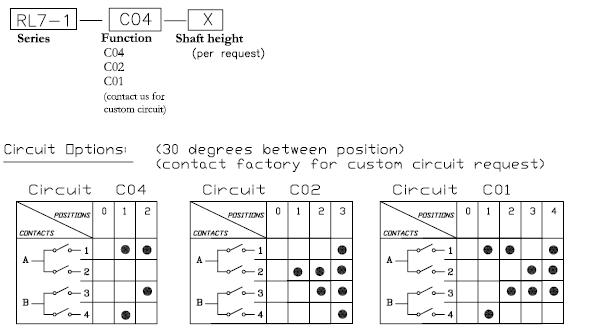

Some frequently used Part Numbers:
RL7-1C047 3 position rotary switch, 16A 125VAC, 0.250" Q.C | Check Stock

Build own part number
