We provide several pushbutton switches for different panel cut-out sizes, DC & AC applications, including vacuum cleaner, office equipment, automation, industrial control, battery powered vehicles, security access, etc. And we can cross other suppliers' part numbers, including Molveno, Signal Lux, Arcolectric, E-switch, Apem.

RoHS | IP65 - IP67
Pushbutton switch RL5-1
RL5-1 SP, DP:
Panel hole size:
0.984" (25.0mm)
16A, 1/2HP 125VAC UL, cUL
16(4)A 250V~ T125 VDE
10(4)A 250V~ T125 VDE
... more details
Pushbutton switch HY52
HY52 DP:
Panel cut-out:
0.866 x 1.161" (22.0 x 29.5mm)
IP54 water proof
20A 125VAC UL, cUL
10(8)A 250V~ S, ENEC
... more details
Pushbutton switch KJD17
KJD17 DP:
Panel cut-out:
0.866x1.811" (22.0 x 46.0mm)
Electro-magnetic Switch
12A 1/2HP 120VAC UL, cUL
10(8)A 250V~ VDE
16(12)A 120V~ TUV
... more details
Pushbutton switch KAN-L5
KAN-L5 series
DPST, SPST ON/OFF,(ON) OFF
15A 125VAC, 7.5A 250VAC
1/2HP 125-250VAC UL, cUL
10(8)A 250V~ VDE
... more details
Anti-Vandal switch
Anti-vandal pushbutton
IP67 water proof
Several sizes, LED illuminations
Ø 16mm | Ø 19mm | Ø 22mm | Ø 25mm
... more details

Pushbutton switch HY57
HY57 Emergency switch
Panel hole size:
0.870" (22.0mm)
18A 125VAC UL, cUL
16A 250V~ TUV
... more details
Pushbutton switch GQ12
GQ12 series
SPST (ON) OFF
2A 36VDC
over 200,000 life cycles
... more details

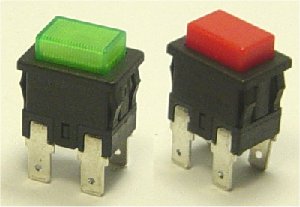

Pushbutton switch KAN-L6
KAN-L6 series
DPST, SPST ON/OFF,(ON) OFF
15A 125VAC, 7.5A 250VAC
1/2HP 125-250VAC UL, cUL
10(8)A 250V~ TUV
... more details
Pushbutton switch RL5-2
RL5-2 (ON)-OFF:
Panel hole size:
0.5904" (15.0mm)
16A, 125VAC UL, cUL
10A 250V~ T105 VDE
... more details
Pushbutton switch RL5-4
RL5-4 (ON) OFF
Panel cut-out:
0.512 x 0.756"
6A 125-250VAC UL, cUL
10(2)A 250V~ VDE
... more details
Foot pedal switch
KA12 series IP40
SP On-(On)
30A 12VDC
over 50,000 cycles
... more details

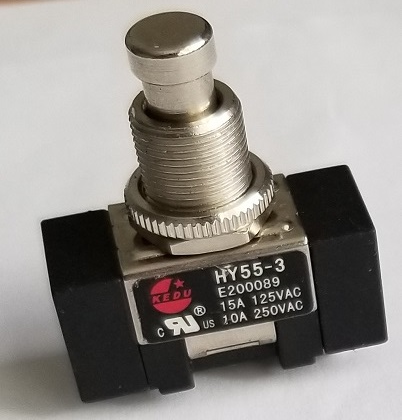

Pushbutton switch
HY55 , (ON) OFF
Panel hole: 0.476" Dia.
16A 125VAC
10A 250VAC, UL, cUL
... more details
Pushbutton switch HY69
HY69 , (ON) ON
Panel hole: 1.10 x 0.52"
16A 125VAC
12A 250VAC, UL, cUL
... more details
Pushbutton switch HY56
HY56 , ON.OFF

35A 125VAC
3HP 230VAC, UL, cUL
... more details
Pushbutton switch HY67
HY67 , (ON).OFF

18A 125VAC , 3/4HP
15A 250VAC, 3/4HP UL, cUL
... more details
