HY52 Pushbutton switch
The HY52 series pushbutton switch has high rating with UL, cUL and ENEC approvals. It snaps easily into the panel cut-out size: 0.866 x 1.162" (22.0 x 29.5mm). The switch has SP and DP with On.Off or On.On, also available in LED effect illumination red , green and other colors. Moreover, it has internal design against water and dust, with IP54 rating without PVC cap. This switch is fully compliant with RoHS.

IP54 RoHS compliant
20A 125VAC, 12A 250VAC UL, cUL
10(8)A 250V~ S, ENEC

Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Body: PA66
Actuator: PA66
Contact: Silver Alloy
Terminal: Silver plated copper

HY52 Spec sheet (pdf file)
Some frequently used Part Numbers:
HY52-D12WBB1 DPST, ON OFF, 20A 125VAC, black body/actuator, white I O marking, 0.250" Q.C | Check Stock
HY52-D2BB1 DPDT, ON ON, 20A 125VAC, black body/actuator, no marking, 0.250" Q.C | Check Stock

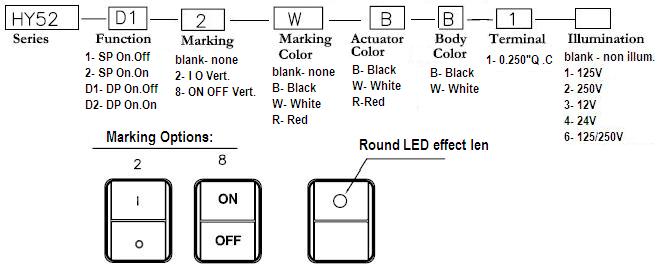

Build own part number
