YSR-9 Rocker switch

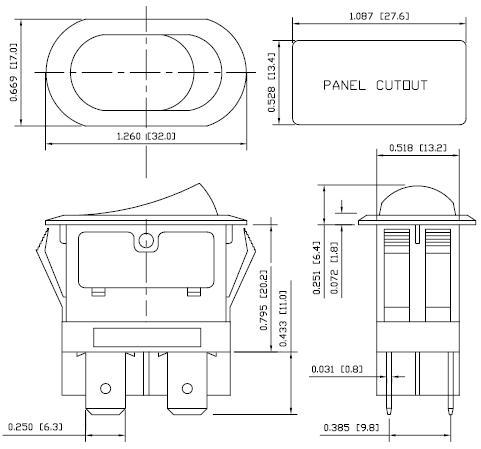

The YSR-9 series rocker switch has high rating with UL, cUL and VDE approvals. It snaps easily into the panel cut-out: 0.528 x 1.087" (13.4 x 27.6mm). The switch is DPST On.Off, and available in illumination red , green , amber and other colors. This switch is fully compliant with RoHS.



RoHS compliant
SPECIFICATION:
Rating:
20A 125VAC,16A 250VAC UL, cUL
1/2HP 125VAC 105°C UL, cUL
16(6)A 250V~ VDE
10(4)A 250V~ VDE
Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Material:
Body: Nylon 103HSL
Actuator: Nylon HSL,PC for illuminated len
Contact: Silver Alloy
Terminal: Silver plated brass

Download
YSR-9 Spec sheet (pdf file)

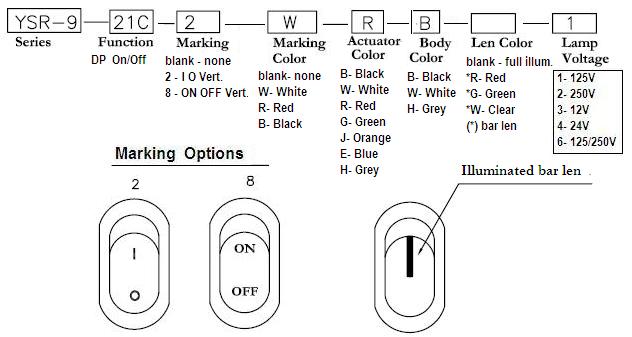

Some frequently used Part Numbers:
YSR-921CBB DPST, ON OFF, 20A 125VAC, black body/actuator, no marking, 0.250" solder | Check Stock
YSR-921C2WBB DPST, ON OFF, 20A 125VAC, black body/actuator, white I O marking, 0.250" solder | Check Stock
YSR-921C2WRB1 DPST, ON OFF red illuminated, 20A 125VAC, white I O marking, 0.250" solder | Check Stock
YSR-921CBBG1 DPST, ON OFF, green illuminated bar , 20A 125VAC, 0.250" solder | Check Stock

Build own part number
