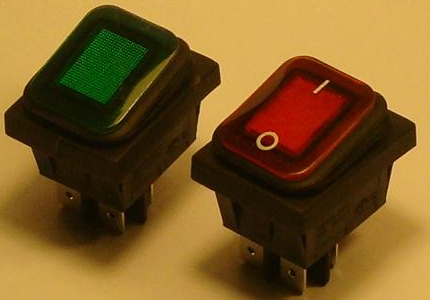

The RL2-P series rocker switch has high rating with UL, cUL and European approvals. It snaps easily

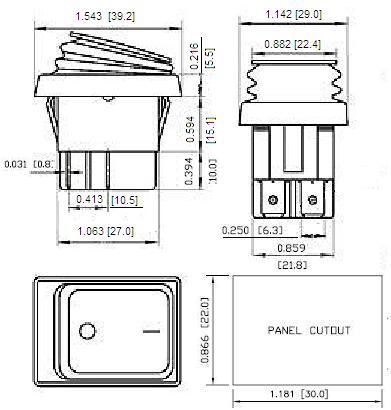

into the industry standard panel cut-out: 0.866 x 1.181" (22.0 x 30.0mm). The switch has strong rubber boot for dust and water protection.
The function includes On/Off, On/On, and lighted in red , green , amber colors.
This switch is fully compliant with RoHS.
IP55 rated water proof version, go to
HY12-9 series
Internal design water proof, bi-color rocker, go to
KND2 series
For SP version, go to
RL1-3 series
RoHS compliant
|
|
SPECIFICATION:
Rating:
16A 125VAC, 10A 250VAC, UL, cUL
3/4HP 125-250VAC, 80°C UL, cUL
16(8)A 250V~ T85 1E4, ENEC
Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles
|
Material:
Body: PA66
Actuator: PC for illuminated len
Boot: Rubber
Contact: Silver Alloy
Terminal: Silver plated copper
Download
RL2-P Spec sheet (tif file)
|
Some frequently used Part Numbers:
|
|
|

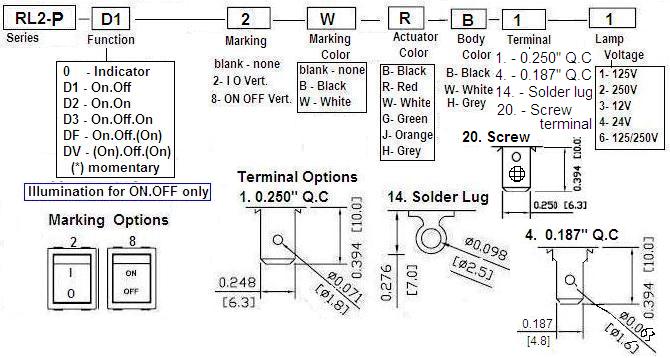

RL2-PD12WGB11 |
DPST, ON OFF, green illuminated, 16A 125VAC, white I O marking, 0.250" Q.C | 1,500pcs in stock |
|
RL2-PD12WBB1 |
DPST, ON OFF, 16A 125VAC, black body/actuator, white I O marking, 0.250" Q.C |
|
RL2-PD12WRB11 |
DPST, ON OFF, red illuminated , 16A 125VAC, white I O marking, 0.250" Q.C | 100pcs in stock |
|
RL2-PD2BB1 |
DPDT, ON ON, 16A 125VAC, black body/actuator, no marking, 0.250" Q.C |
|
