Home page > Rocker switches > KCD2
KCD2 Rocker switch KCD2 Rocker switch
The KCD2- series rocker switch has high rating with UL, cUL and European approvals. It snaps easily into the industry standard panel cut-out: 0.866 x 1.185" (22.0 x 30.0mm) or 0.866 x 1.102" ( 22.0 x 28.0mm). The switch has internal design protection against dust and water. So water will not get inside the switch body onto the contacts. The function includes On/Off, On/On, On/Off/On, momentary and illuminated in red , green , amber colors. This switch is fully compliant with RoHS.

For IP55 rated water proof version, go to HY12-9 series
Another internal & panael seal switch, go to KND2 series

For SP version, go to RL1-3 series

RoHS compliant
16A 125VAC, UL, cUL
16(4)A 250V~ T125 1E4, ENEC

Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Body: PA66
Actuator: PC for illuminated len
Contact: Silver Alloy
Terminal: Silver plated copper

KCD2 Spec sheet (JPG file)
Some frequently used Part Numbers:
KCD2-D1R2WRB1 DPST, ON OFF, red illuminated , 16A 125VAC, white I O marking, 0.250" Q.C
KCD2-D2RBB DPDT, ON ON, 16A 125VAC, black body/actuator, no marking, 0.250" Q.C
KCD2-D1R2WGB3 DPST, ON OFF, green illuminated at 12V, 16A 125VAC, white I O marking, 0.250" Q.C

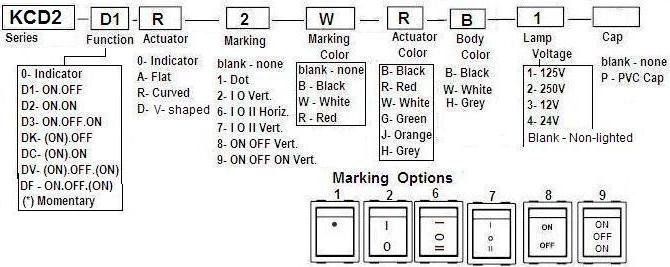

Build own part number
