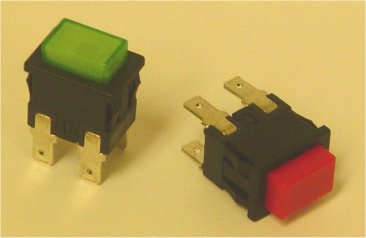

KAN-L6 pushbutton switch
The KAN-L6 series pushbutton switch has high rating with UL, cUL and TUV approvals. It snaps easily into the industry standard panel cut-out: 0.512 x 0.756" (13.0 x 19.2mm). The switch comes in DP and SP, On.Off or (On).Off. It has illumination in red , green , amber and other colors. This switch is fully compliant with RoHS.
Foot pedal pushbutton switch go to KAN-L5 series with

RoHS compliant
SPECIFICATION:
Rating:
16A 125VAC, 8A 250VAC, UL, cUL
1/2HP 125-250VAC, 105°C, UL, cUL
10(8)A 250V~ T120 1E4, TUV

Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Material:
Body: PA66
Actuator: PA66, PC for illuminated rocker
Contact: Silver Alloy
Terminal: Silver plated copper

Download
KAN-L6 Spec sheet (pdf file)
Some frequently used Part Numbers:
KAN-L61FB4 SPST, ON OFF, 16A 125VAC, black body/actuator, no marking, 0.187" Q.C | Check Stock
KAN-L61FG41 SPST, ON OFF green illuminated , 16A 125VAC, no marking, 0.187" Q.C | Check Stock
KAN-L6KFB4 SPST, (ON) OFF, 16A 125VAC, black body/actuator, no marking, 0.187" Q.C | Check Stock

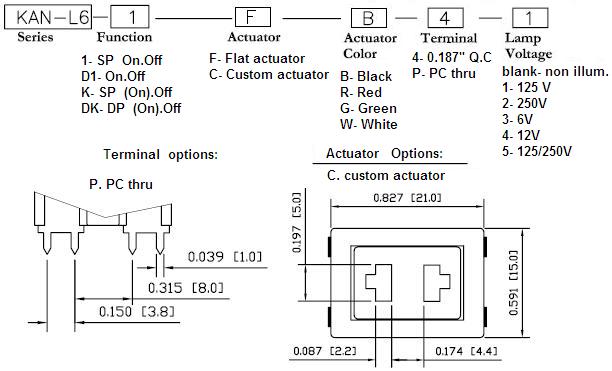

Build own part number
