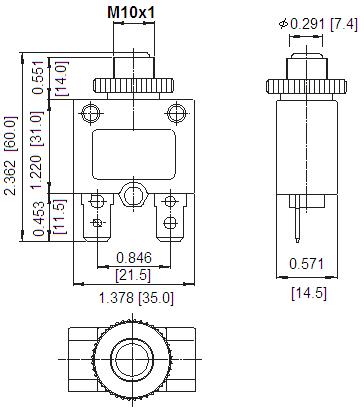

The DLQ2 series circuit breaker has over current protection, with UL and cUL approved ratings up to 30A. It will trip automatically when input loading exceeds certain current; and has manual reset feature to resume working. This procuct is fully compliant with RoHS.

Circuit Breaker + Rocker Switch , go to SS-001 series

RoHS compliant

SPECIFICATION:
Rating:
5 - 30A 125/250VAC UL, cUL
Endurance: 500 cycles at 200% rated current
Dielectric Strength: 1,500VAC 1 min.
Interrupt Capacity: 1,000A 125VAC

Material:
Body: PA66
Button: PA66
Contact: Silver Alloy
Terminal: Silver plated copper

Download
DLQ2 Spec sheet (TIF file)

Some frequently used Part Numbers:

DLQ2-101310R

10A 125VAC, circuit breaker, manual reset red button, 0.250" Q.C

Check Stock

DLQ2-151310B

15A 125VAC, circuit breaker, manual reset black button, 0.250" Q.C

Check Stock

Build own part number
