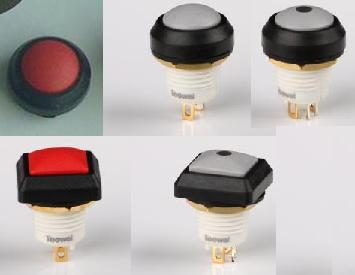

TW4 Pushbutton switch
The TW4 series water proof pushbutton switch has internal sealing designed with rating IP67 for front panel assembly. It has long operating life, over 200,000 loading cycles. The function is On.Off maintained or momentary ON, with various button color options. This switch is fully compliant with RoHS.

IP67 <> RoHS compliant
5A 125VAC , 2A 250VAC (Silver contact)
2A 36VDC ( Gold plated contact)
Electrical life: Over 100,000 cycles
Mechanical life: Over 200,000 cycles

Body: PBT
Actuator: Nylon
Contact: Silver or gold plated brass
Terminal: Silver or Gold plated brass

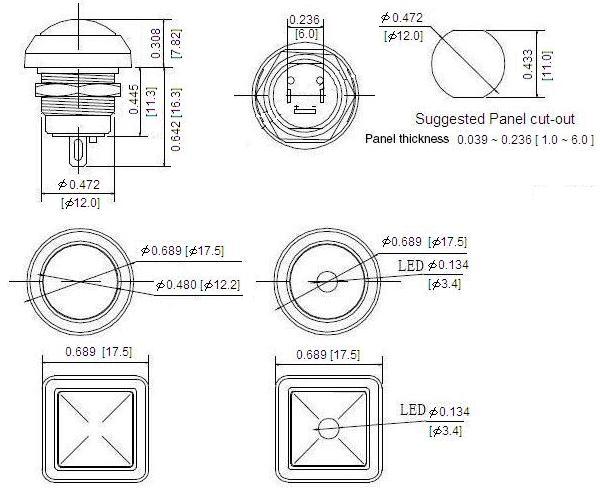

TW4 Spec sheet (tif file)
Some frequently used Part Numbers:
TW4-KRR02 SPST, (ON) OFF, solid red round actuator,non-lighted, solder lug terminal
TW4-1RW02 SPST, ON OFF, solid white round actuator, not-lighted, solder lug terminal

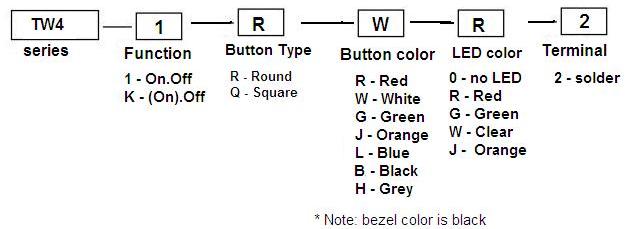

Build own part number
