RL5-4 pushbutton switch

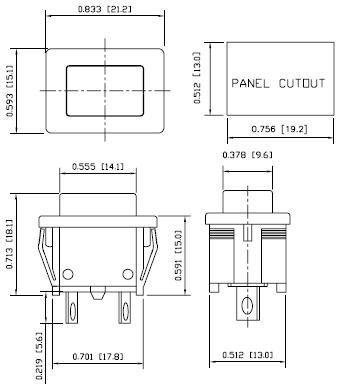

The RL5-4 series pushbutton switch has UL, cUL and European approvals. It snaps easily into the industry standard panel cut-out: 0.512 x 0.756" (13.0 x 19.2mm). The switch is SPST (On) Off, and is fully compliant with RoHS.


RoHS compliant
SPECIFICATION:
Rating:
6A 125-250VAC 85°C, UL, cUL
5(2)A 250V~ 5E4, ENEC
10(4)A 250V~ ENEC

Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Material:
Body: PA66
Actuator: PA66
Contact: Silver Alloy
Terminal: Silver plated copper

Download
RL5-4 Spec sheet (pdf file)
Some frequently used Part Numbers:
RL5-4BB SPST, (ON) OFF, 6A 125VAC, black body/actuator, no marking, solder lug | Check Stock
RL5-4WW SPST, (ON) OFF, 6A 125VAC, white body/actuator, no marking, solder lug | Check Stock

Build own part number
