The RL5-1 series pushbutton switch has high power rating with UL, cUL and European approvals. It snaps easily
into the panel hole size: 0.984" (25.0mm). The switch has SP and DP with On.Off or (On).Off function, also available in illumination
red , green , amber and other colors. The button can
add a PVC cap for water, dust protection or choose RL5-1P with an integrated rubber boot for better protection.
This switch is fully compliant with RoHS.
RoHS compliant
SPECIFICATION:
Rating:
16A 125VAC 105°C UL, cUL
1/2HP 125VAC, 3/4HP 250VAC UL, cUL
16(4)A 250V~ T125 1E4 ENEC
10(4)A 250V~ T125 5E4 ENEC
Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles
Material:
Body: PA66
Actuator: PA66, PC for illuminated len
Contact: Silver Alloy
Terminal: Silver plated copper
Download
RL5-1 Spec sheet (pdf file)
|
|
|

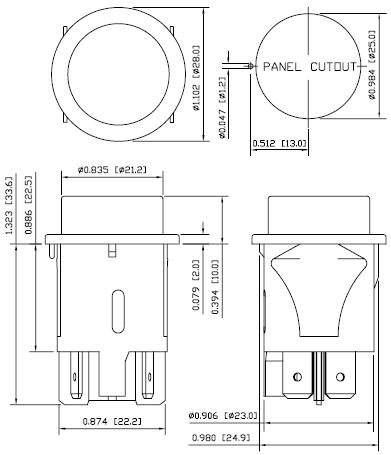

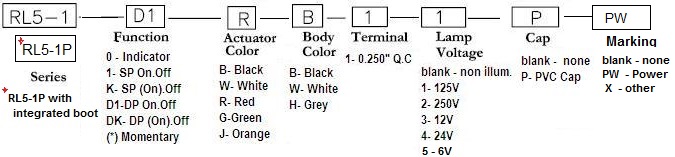

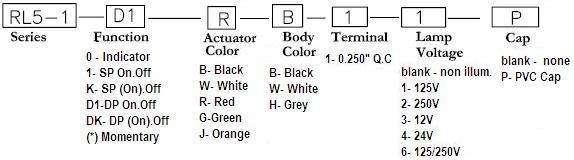

Some frequently used Part Numbers:
|
|
|
|
RL5-1D1RB11 |
DPST, ON OFF, red illuminated , 16A 125VAC, 0.250" Q.C |
Check Stock |
|
RL5-1D1BB1 |
DPST, ON OFF, 16A 125VAC, black body/actuator, no marking, 0.250" Q.C |
Check Stock |
|
RL5-1KBB1 |
SPST, (ON) OFF, 16A 125VAC, black body/actuator, no marking, 0.250" Q.C |
Check Stock |
|
RL5-1DKBB1 |
DPST, (ON) OFF, 16A 125VAC, black body/actuator, no marking, 0.250" Q.C |
Check Stock |
