RL3-6 Rocker switch

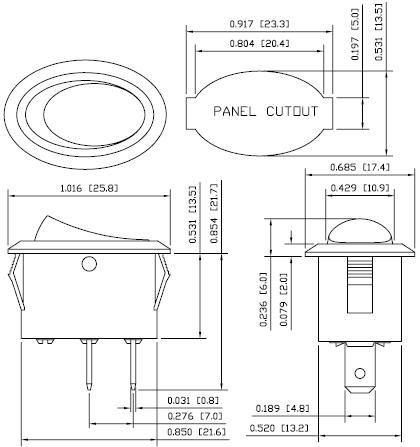

The RL3-6 series oval rocker switch has high power rating with UL, cUL and European ENEC approvals. It snaps easily into panel cut-out: 0.531 x .917" (13.50 x 23.30mm). The switch is SP with several functions, like On/Off, On/On, On/Off/On. Also it has illumination in red , green , amber and other colors. This switch is fully compliant with RoHS.

DP version, go to YSR-34 series and YSR-9 series


RoHS compliant
SPECIFICATION:
Rating:
16A 125VAC, 10A 250VAC UL, cUL
1/3HP 125-250VAC,105°C UL, cUL
10(4)A 250V~ T125 1E4, ENEC
-----------------------
10A 125VAC, UL, cUL
6(2)A 250V~ T125, ENEC

Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Material:
Body: PA66
Actuator: PA66, PC for illuminated len
Contact: Silver Alloy
Terminal: Silver plated copper

Download
RL3-6 Spec sheet (pdf file)

Check Stock
Some frequently used Part Numbers:
RL3-61G2WBB4 SPST, ON OFF, 10A 125VAC, black body/actuator, white I O marking, 0.187" Q.C | Check Stock
RL3-61H2WRB41 SPST, ON OFF, red illuminated , 16A 125VAC, white I O marking, 0.187" Q.C | Check Stock
RL3-61H2WBB4 SPST, ON OFF, 16A 125VAC, black body/actuator, white I O marking, 0.187" Q.C | Check Stock
RL3-62HBB4 SPDT, ON ON, 16A 125VAC, black body/actuator, no marking, 0.187" Q.C | Check Stock
RL3-63G7WBB4 SPDT, ON OFF ON, 10A 125VAC, black body/actuator, white I O II marking, 0.187" Q.C | Check Stock
RL3-61H2BWW4 SPST, ON OFF, 16A 125VAC, white/white, black I O marking, 0.187" Q.C | Check Stock

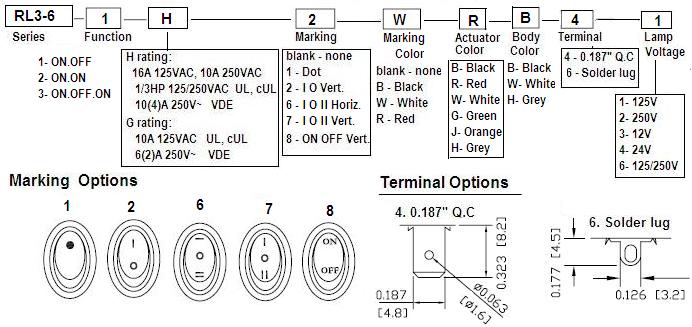

Build own part number
