RL3-5X Round Rocker switch

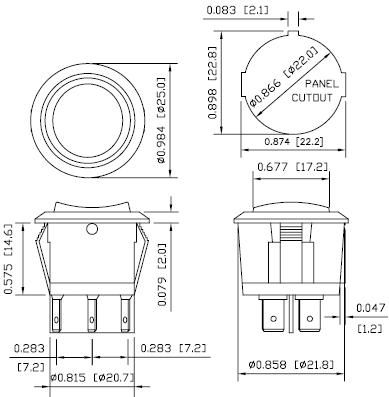

The RL3-5X series round rocker switch has high power rating with UL, cUL and European ENEC approvals. It snaps easily into panel hole: 0.866" (22.0mm). The switch is DP with many functiosn, including On.Off, On.On, On.Off.On. It also has illumination in red , green , amber and other colors. PVC cap provides protection against water and dust. This switch is fully compliant with RoHS.

SP round rocker , go to RL3-5 series

RoHS compliant
SPECIFICATION:
Rating:
15A 125VAC, 85°C UL, cUL
1/3HP 125-250VAC, UL, cUL
12(8)A 250VAC,1E4, ENEC

Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Material:
Body: PA66
Actuator: PA66, PC for illuminated len
Contact: Silver Alloy
Terminal: Silver plated copper

Download RL3-5X Spec sheet (pdf file)
Check Stock
Some frequently used Part Numbers:
RL3-5XD1HBB4 DPST, ON OFF, 15A 125VAC, black body/actuator, no marking, 0.187" Q.C | Check Stock
RL3-5XD2HBB4 DPDT, ON ON, 15A 125VAC, black body/actuator, no marking, 0.187" Q.C | Check Stock
RL3-5XD3HBB4 DPDT, ON OFF ON, 15A 125VAC, black body/actuator, no marking, 0.187" Q.C | Check Stock
RL3-5XD1H2WRB41 DPST, ON OFF, red illuminated , 15A 125VAC, white I O marking, 0.187" Q.C | Check Stock

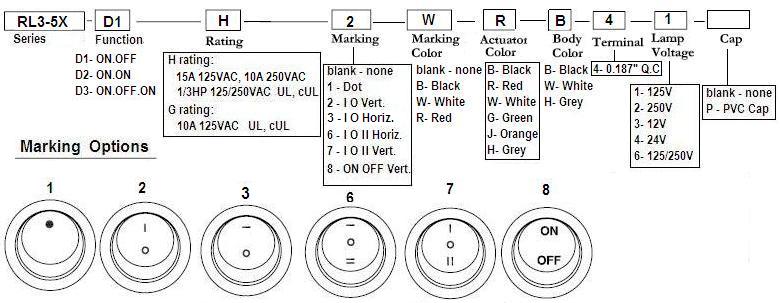

Build own part number
