The RL3-3 series rocker switch has high power rating with UL, cUL and European approvals. It snaps easily

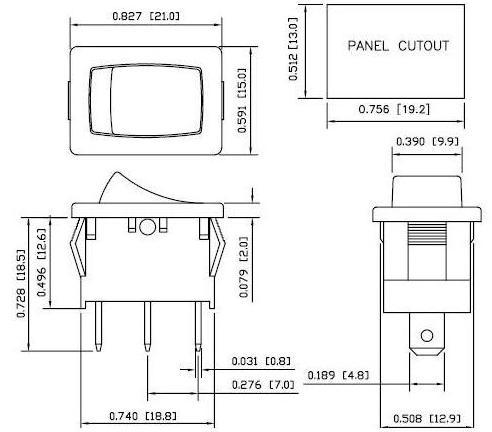

into the industry standard panel cut-out: 0.512 x 0.756" (13.0 x 19.2mm). The switch is SPST On/Off illuminated in red , green , amber and other colors. PVC
cap provides protection against water and dust. This switch is fully compliant with RoHS.
Single Pole Non-illuminated is available in
RL3-1 series
Double pole version, go to
RL3-4 series and
RL3-10 series
RoHS compliant
|
|
SPECIFICATION:
Rating:
16A 125VAC, 10A 250VAC, UL, cUL
1/3HP 125-250VAC, 105°C, UL, cUL
10(4)A 250V~ T125 1E4, ENEC
------------------
10A 125VAC, UL, cUL
6(2)A 250V~ T125 1E4, ENEC
Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles
|
Material:
Body: PA66
Actuator: PC
Contact: Silver Alloy
Terminal: Silver plated copper
Download RL3-3 Spec sheet (pdf file)
|

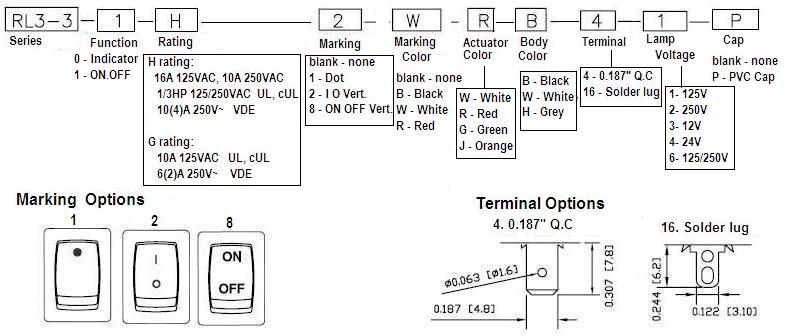

Some frequently used Part Numbers:
|
|
|
RL3-31H2WGB41 |
SPST, ON OFF, 16A 125VAC, black body, green illuminated , white I O marking, 0.187" Q.C |
Check Stock |
RL3-31H2WRB41 |
SPST, ON OFF, 16A 125VAC, black body, red illuminated , white I O marking, 0.187" Q.C |
Check Stock |
RL3-31G2WGB41 |
SPST, ON OFF, 10A 125VAC, black body, green illuminated , white I O marking, 0.187" Q.C |
Check Stock |
RL3-31G2WRB41 |
SPST, ON OFF, 10A 125VAC, black body, red illuminated , , white I O marking, 0.187" Q.C |
Check Stock |
