Rocker switch 13x19mm

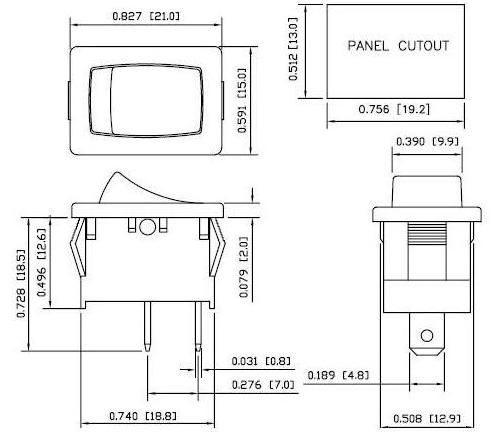

The RL3-1 series rocker switch has high power rating with UL, cUL and European approvals. It snaps easily into the industry standard panel cut-out: 0.512 x 0.756" (13.0 x 19.2mm). The switch comes in Single pole with multiple functions, including On/off, On/On, On/Off/On, momentary On etc. PVC cap provides protection against water and dust. This switch is fully compliant with RoHS.
The illumination is available in RL3-3 series with red , green , amber and other colors.
For double pole version, go to RL3-4 series and RL3-10 series

RoHS compliant
SPECIFICATION:
Rating:
16A 125VAC, 10A 250VAC, UL, cUL
1/3HP 125-250VAC, 105°C, UL, cUL
10(4)A 250V~ T125 1E4, ENEC
------------------
10A 125VAC, UL, cUL
6(2)A 250V~ T125 1E4, ENEC

Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Material:
Body: PA66
Actuator: PA66
Contact: Silver Alloy
Terminal: Silver plated copper

Download RL3-1 Spec sheet (pdf file)
Check Stock
Some frequently used Part Numbers:
RL3-11H2WBB4 SPST, ON OFF, 16A 125VAC, black body/actuator, white I O marking, 0.187" Q.C Check Stock
RL3-11GBB4 SPST, ON OFF, 10A 125VAC, black body/actuator, no marking, 0.187" Q.C Check Stock
RL3-12HBB4 SPDT, ON ON, 16A 125VAC, black body/actuator, no marking, 0.187" Q.C Check Stock
RL3-1KG1WBB4 SPST, (ON) OFF, 10A 125VAC, black body/actuator, white dot marking, 0.187" Q.C Check Stock
RL3-11G2WBB4 SPST, ON OFF, 10A 125VAC, black/black, white I O marking, 0.187" Q.C Check Stock

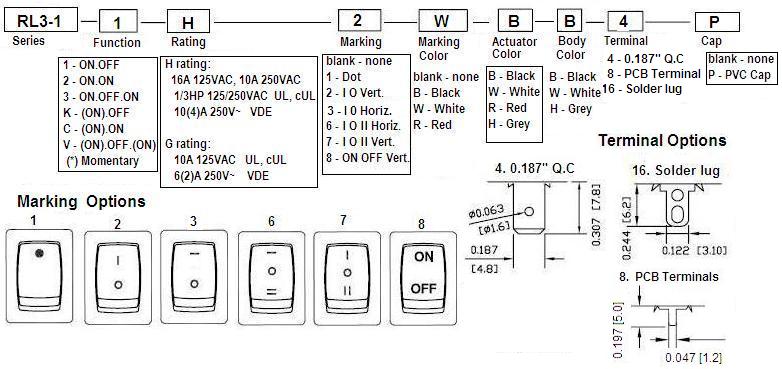

Build own part number
