RL2-5 Rocker switch

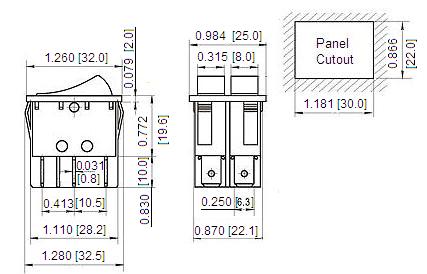

The RL2-5 series rocker switch has high power rating with UL, cUL and European approvals. It snaps easily into the industry standard panel cut-out: 0.866 x 1.181" (22.0 x 30.0mm). The switch has double actuator functions, including On/Off, On/On, (On)/Off, and lighted. The illumination has red , green , amber and other colors. PVC cap provides protection against water and dust. This switch is fully compliant with RoHS.

IP55 rated water proof version, go to HY12-9 series
Internal design water proof, bi-color rocker, go to KND2 series

For SP version, go to RL1-3 series

RoHS compliant
SPECIFICATION:
Rating:
16A 125VAC, 8A 250VAC, UL, cUL
16(4)A 250V~ T125 1E4, ENEC

Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Material:
Body: PA66
Actuator: PA66, PC for illuminated len
Contact: Silver Alloy
Terminal: Silver plated copper

Some frequently used Part Numbers:
RL2-5R12WB/12WB-B1 Double SPST, ON OFF, 16A 125VAC, black body/actuator, white I O marking, 0.250" Q.C
RL2-5R12WR/12WR-B11 Double SPST, ON OFF, red illuminated , 16A 125VAC, white I O marking, 0.250" Q.C
RL2-5R-2B/2B-B1 Double SPDT, ON ON, 16A 125VAC, black body/actuator, no marking, 0.250" Q.C

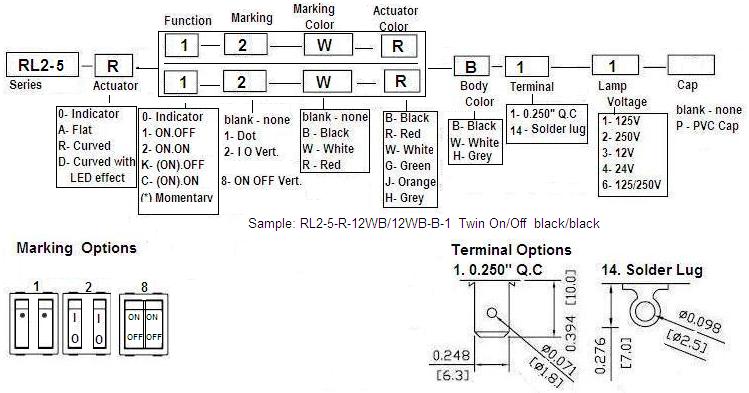

Build own part number
