RL2-3 Rocker switch RL2-3 Rocker switch

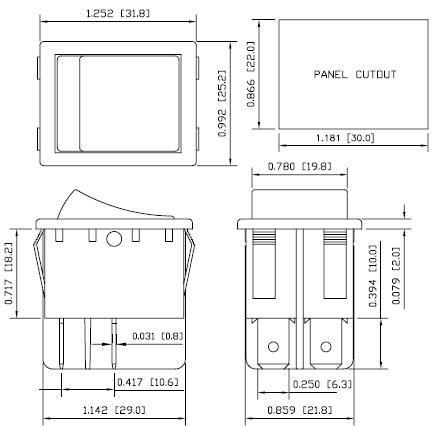

The RL2-3 series rocker switch has high power rating with UL, cUL and European approvals. It snaps easily into the industry standard panel cut-out: 0.866 x 1.181" (22.0 x 30.0mm). The switch is DP with many functions, like On/Off, On/On, On/Off/On, momentary On etc. Also it has illumination in red , green , amber and other colors. PVC cap provides protection against water and dust. This switch is fully compliant with RoHS.
The actuator has bi-color option in black/red or black/green.

RL2-1 fits smaller panel cut-out: 0.866 x 1.102" (22.0 x 28.0mm), same functions and rating as RL2-3 series.

IP55 rated water proof version, go to HY12-9 series

For SP version, go to RL1-3 series

RoHS compliant
SPECIFICATION:
Rating:
16A 125VAC, 8A 250VAC, UL, cUL
16(4)A 250V~ T125 1E4, ENEC
16(8)A 250VAC T85 1E4, ENEC

Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Material:
Body: PA66
Actuator: PA66, PC for illuminated len
Contact: Silver Alloy
Terminal: Silver plated copper

Download RL2-3 Spec sheet (pdf file)
Check Stock
Some frequently used Part Numbers:
RL2-3D1R2WBB1 DPST, ON OFF, 16A 125VAC, black body/actuator, white I O marking, 0.250" Q.C Check Stock
RL2-3D1R2WRB11 DPST, ON OFF, red illuminated , 16A 125VAC, white I O marking, 0.250" Q.C Check Stock
RL2-3D1RRB1 DPST, ON OFF, 16A 125VAC, black body/red actuator, no marking, 0.250" Q.C Check Stock
RL2-3D2RBB1 DPDT, ON ON, 16A 125VAC, black body/actuator, no marking, 0.250" Q.C Check Stock
RL2-3DVRBB1 DPDT, (ON) OFF (ON), 16A 125VAC, black body/actuator, no marking, 0.250" Q.C Check Stock
RL2-3D1R2WGB11 DPST, ON OFF, green illuminated, 16A 125VAC, white I O marking, 0.250" Q.C Check Stock

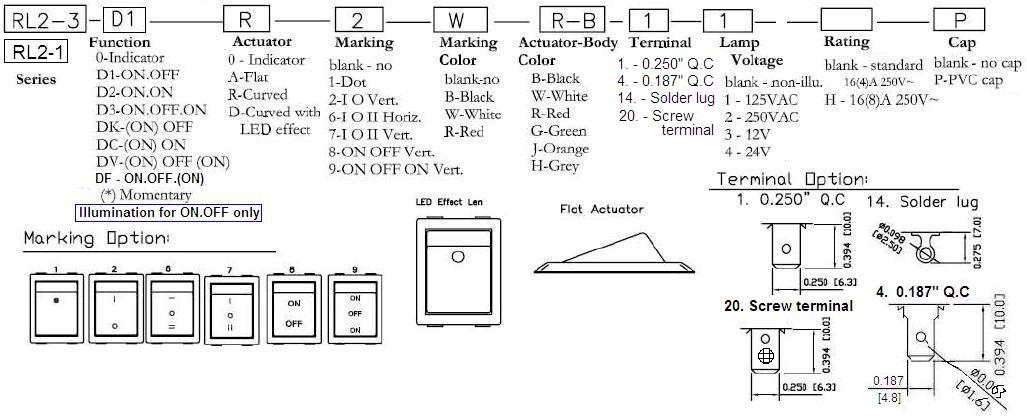

Build own part number
