RL1-8 Rocker switch

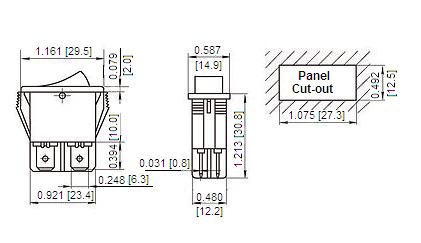

The RL1-8 series rocker switch has high rating with UL, cUL and VDE approvals. It snaps easily into the standard panel cut-out: 0.492 x 1.075" (12.5 x 27.3mm). The switch is DPSP or SPST On.Off, and is fully compliant with RoHS.

For sub-panel style version, go to RL1-8 series


RoHS compliant
SPECIFICATION:
Rating:
16A 125VAC,1/2HP 125VAC 105°C UL, cUL
16(4)A 250V~ T125 1E4, VDE
Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Material:
Body: PA66
Actuator: PA66
Contact: Silver Alloy
Terminal: Silver plated copper

Some frequently used Part Numbers:
RL1-8D1BB1F DPST, ON OFF, 16A 125VAC, black body/actuator, no marking, 0.250" Q.C
RL1-8D12WBB1F DPST, ON OFF, 16A 125VAC, black body/actuator, white I O marking, 0.250" Q.C
RL1-8D12BWW1F DPST, ON OFF, 16A 125VAC, white body/actuator, black I O marking, 0.250" Q.C

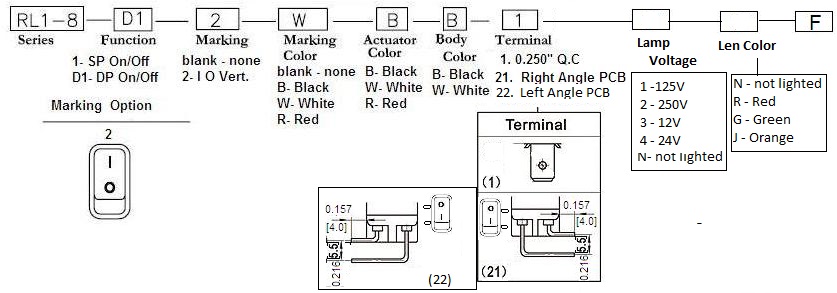

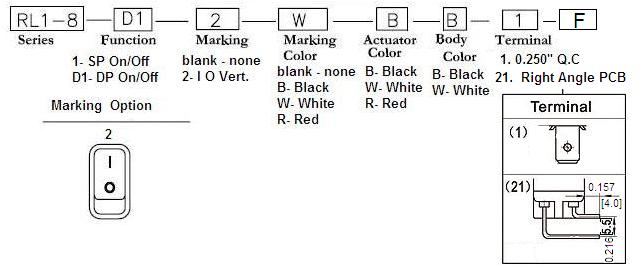

Build own part number
