RL1-5 Rocker switch

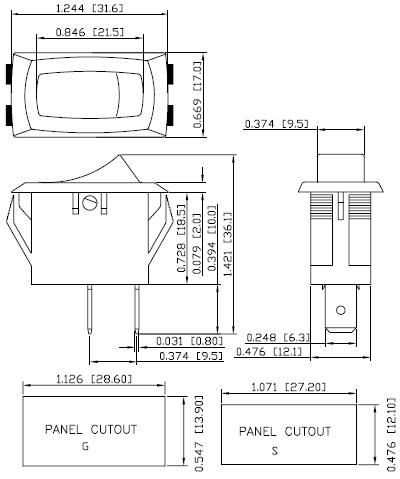

The RL1-5 series rocker switch has high rating with UL, cUL and VDE approvals. It snaps easily into the industry standard panel cut-out: 0.476 x 1.071" (12.10 x 27.20mm) or 0.547 x 1.126" ( 13.90 x 28.60mm). The switch is SP with many functions, like On/Off, On/On, On/Off/On, momentary On etc. Also it has illumination in red , green , amber and other colors. This switch is fully compliant with RoHS.

DP version, go to YSR-9 series

Dust and water resistant version, go to YSR-15 series


RoHS compliant
SPECIFICATION:
Rating:
20A 125VAC, 3/4HP 125VAC, 105°C, UL, cUL
15A 125VAC, 7.5A 250VAC, UL, cUL
16(4)A 250V~ T125 1E4, VDE
10(4)A 250V~ T85 1E4, VDE

Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles

Material:
Body: PA66
Actuator: PA66, PC for illuminated len
Contact: Silver Alloy
Terminal: Silver plated copper

Download RL1-5 Spec sheet (pdf file)
Check Stock
Some frequently used Part Numbers:
RL1-51RBB1SH SPST, ON OFF, 20A 125VAC, black body/actuator, no marking, 0.250" Q.C Check Stock
RL1-51RRB11SH SPST, ON OFF, red illuminated , 20A 125VAC, no marking, 0.250" Q.C Check Stock
RL1-51RGB11SH SPST, ON OFF green illuminated , 20A 125VAC,no marking, 0.250" Q.C Check Stock
RL1-5KABB1SH SPST, (ON) OFF, 20A 125VAC, black/black, flat actuator, no marking, 0.250" Q.C Check Stock
RL1-53RBB1SH SPDT, ON OFF ON, 20A 125VAC, black body/actuator, no marking, 0.250" Q.C Check Stock

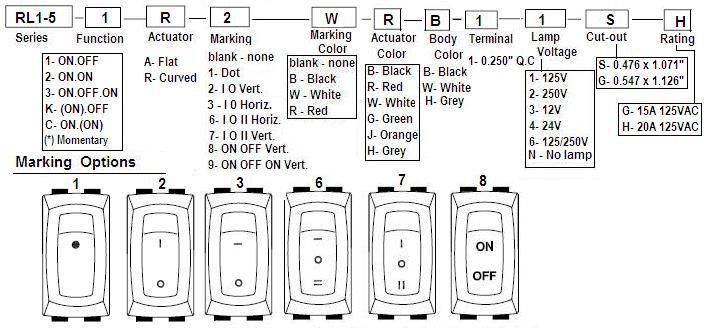

Build own part number
