Rocker switches > KCD3

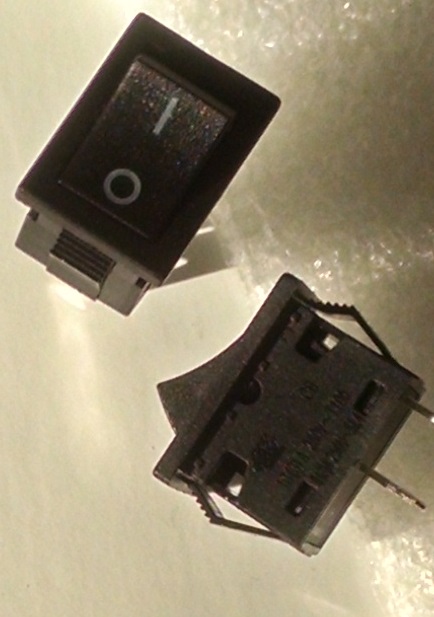

The KCD3- series rocker switch has high rating with UL, cUL and European approvals. It snaps easily
into the industry standard panel cut-out: 0.516 x 0.756" (13.1 x 19.2mm).
The switch has internal design protection against dust and water. So water will not get inside the switch body onto the contacts.
The function includes On/Off, On/On, On/Off/On. This switch is fully compliant with RoHS.
For IP55 rated water proof version, go to
HY12-9 series
Another internal & panael seal switch, go to
KND2 series
For DP version, go to
KCD2 series
RoHS compliant
SPECIFICATION:
Rating:
15A 125VAC, 10A 250VAC, UL, cUL
1/3HP 125VAC UL
10(3)A 250V~ T105, ENEC
6(3)A 250V~ T105, ENEC
Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles
Material:
Body: PA66
Actuator: PA66
Contact: Silver Alloy
Terminal: Silver plated copper
|
|
|

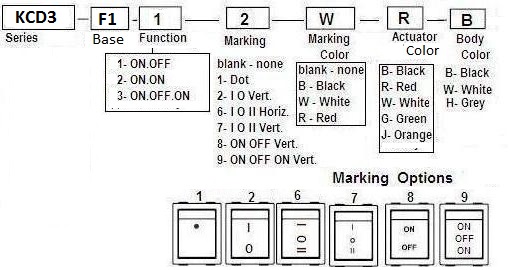

Some frequently used Part Numbers:
|
|
|
|
KCD3-F1-12WRB |
SPST, ON OFF, red actuator, 15A 125VAC, white I O marking |
|
|
KCD3-F1-2BB |
SPDT, ON ON, 15A 125VAC, black body/actuator, no marking |
|
|
KCD3-F1-3BB |
SPDT, ON OFF ON, black actuator/body, no marking |
|
