Rocker switches > KCD3

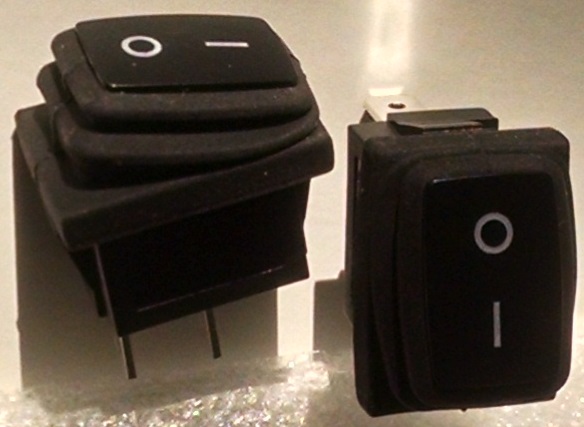

The KCD3- series rocker switch has high rating with UL, cUL and European approvals. It snaps easily

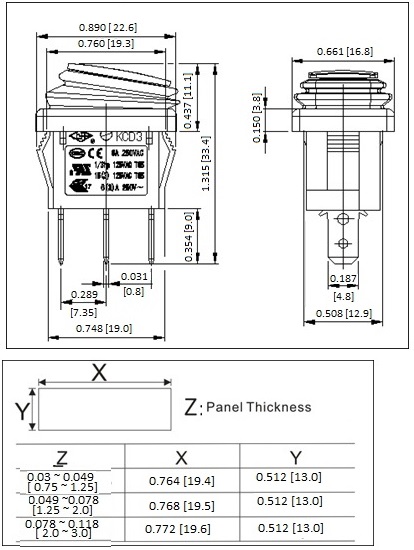

into the industry standard panel cut-out: 0.512 x 0.764" (13.0 x 19.4mm).
The switch has external rubber cap for protection against dust and water.
The function includes On/Off, On/On and illumination option. This switch is fully compliant with RoHS.
For IP55 rated water proof version, go to
HY12-9 series
Another internal & panael seal switch, go to
KND2 series
For DP version, go to
KCD2 series
RoHS compliant
SPECIFICATION:
Rating:
15A 125VAC, 10A 250VAC, UL, cUL
1/3HP 125VAC UL
10(3)A 250V~ T105, ENEC
6(3)A 250V~ T105, ENEC
Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles
Material:
Body: PA66
Actuator: Rubber with PC for Len
Contact: Silver Alloy
Terminal: Silver plated copper
|
|
|

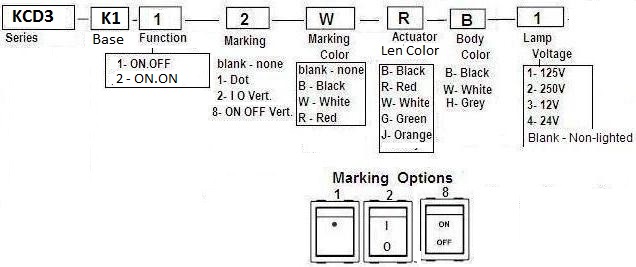

Some frequently used Part Numbers:
|
|
|
|
KCD3-K1-12WRB |
SPST, ON OFF, red actuator, 15A 125VAC, white I O marking |
|
|
KCD3-K1-12WBB |
SPST, ON OFF, 15A 125VAC, black body/actuator, white I O marking |
|
