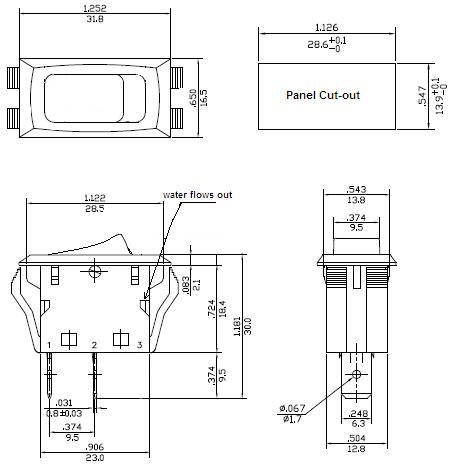

The HB series rocker switch has high rating with UL, CSA, VDE approvals. It snaps easily
into the panel cut-out: 0.547 x 1.126" (13.9 x 28.6mm). The switch is SP with many functions, including On.Off,
(On).Off. Its special internal design leads water out of the switch without touching the contacts.
It is fully compliant with RoHS.
For illuminated version, go to
RL1-5 series
RoHS compliant
Special feature: Water resistant, IP42
|
|
SPECIFICATION:
Rating:
20A 125VAC,16A 250VAC UL, CSA
3/4HP 125-250VAC CSA
16(4)A 250V~ T125 VDE, ENEC
Electrical life: Over 10,000 cycles
Mechanical life: Over 50,000 cycles
|
Material:
Body: Nylon 66
Actuator: Nylon 66
Contact: Silver Alloy
Terminal: Silver plated copper
Download
HB Spec sheet (tif file)
|
|

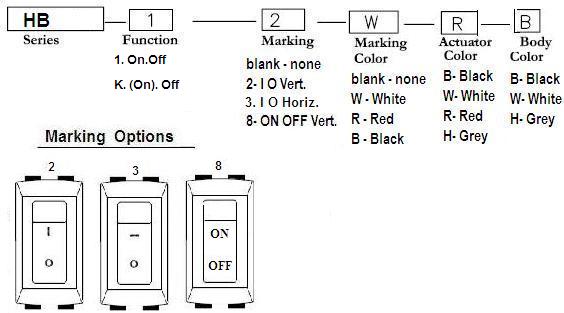

Some frequently used Part Numbers:
|
|
|
|
HB-12WBB |
SPST, ON OFF, 20A 125VAC, black body/actuator, white I O marking, 0.250" Q.C |
Check Stock |
|
HB-1RB |
SPST, ON OFF, 20A 125VAC, black body/red actuator, no marking, 0.250" Q.C |
Check Stock |
|
HB-KBB |
SPST, (ON) OFF, momentary ON, black body/actuator, no marking, 0.250" Q.C |
