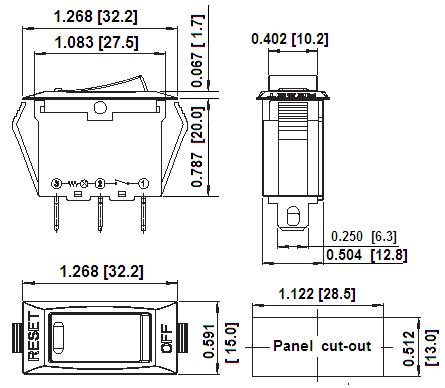

The DLQ3 series is a circuit breaker with switch function. It has over current protection, with UL and cUL approved ratings. It
will trip automatically when input loading exceeds certain current; and can manually reset to resume working. This procuct is fully compliant with RoHS.
Circuit Breaker , go to
DLQ1 series
RoHS compliant
|
|
SPECIFICATION:
Rating:
5 - 18A 125/250VAC UL, cUL
Endurance: over 6,000 cycles at rated current
Dielectric Strength: 1,500VAC 1 min.
Interrupt Capacity: 1,000A 125VAC
|
Material:
Body: PA66
Rocker: PA66, PC for illumination
Contact: Silver Alloy
Terminal: Silver plated copper
Download
DLQ3 Spec sheet (TIF file)
|
|
Some frequently used Part Numbers:
|
|
|
|
DLQ3-15RB11 |
15 125VAC, circuit breaker, red illuminated rocker, solder lug |
Check Stock |
|
DLQ3-15RB31 |
15A 125VAC, circuit breaker, red illuminated rocker, 0.250" Q.C |
Check Stock |
